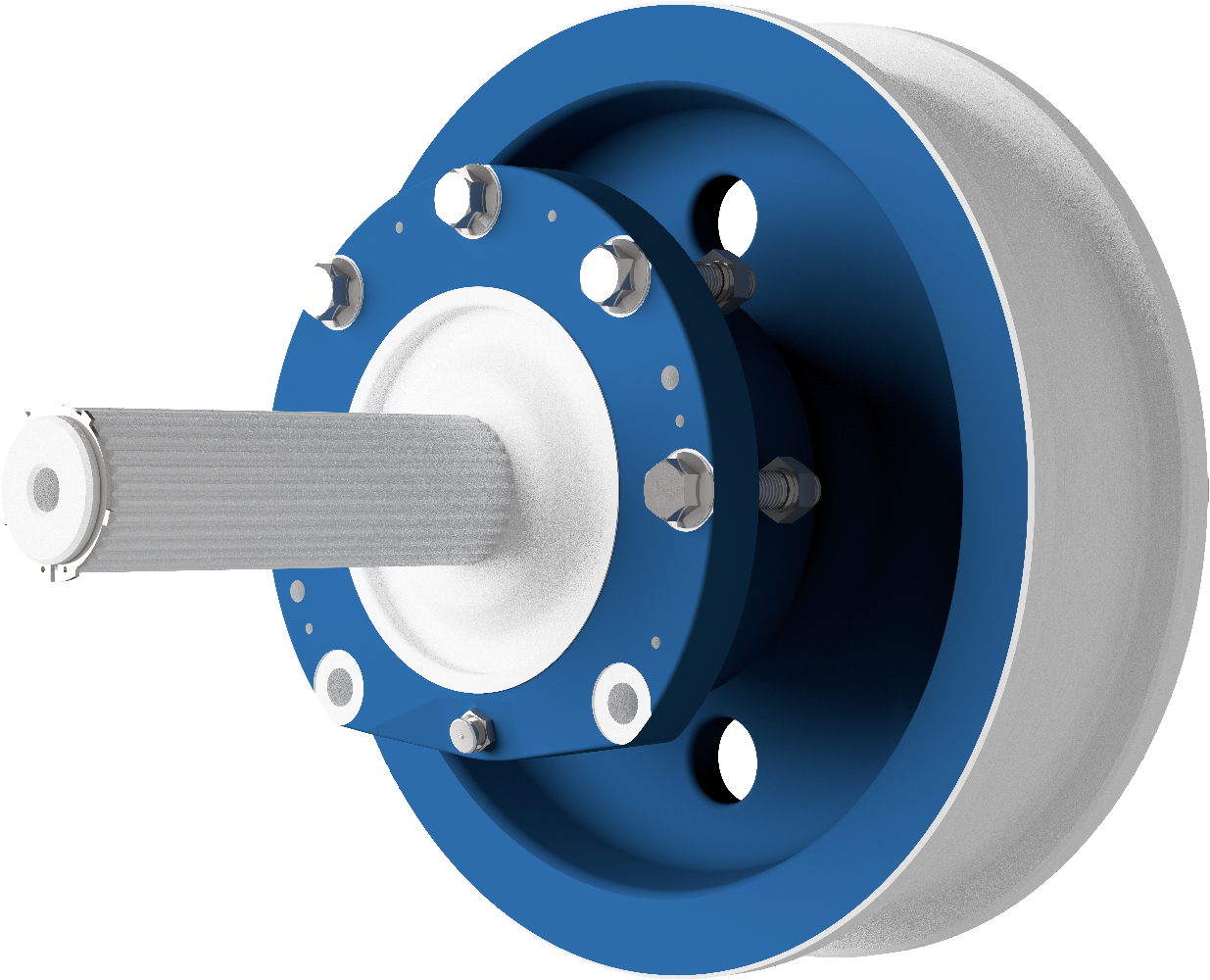

| Size: | 400 |
| Running tread (b1) [mm]: | 80 |
| Wheel width (b2) [mm]: | 125 |
| Installation variant: | 1, corner bearing installation with mechanically machined flange centering |
| Track form: | With double-sided wheel flange |
| Bearing: | Self-aligning roller bearing 223 15 |
| Bearing manufacturer: | NACHI/TIMKEN |
| Shaft type: | Drive shaft |
| Crane wheel-shaft connection: | Cone |
| Gear type: | A.K 60 |
| Gear manufacturer: | DEMAG |
| Gear connection type: | Splined shaft profile |
| Shaft end drive (gearing): | W65 x 2 x 31 - DIN 5480 |
| Distance between middle of the wheelset to hollow shaft / stop (L7) [mm]: | 203 |
| Grease: | Multifak EP2 (Texaco) |
| Temperature range [°C]: | -30 to +90 |
| KG-drawing: | 1.00.26321 |
| Crane wheel material: | EN-GJS-700-2 |
| Flange bearing housing material: | EN-GJS-500-7 |
| Shaft material: | 42CrMo4+QT |
| Painting: | Wheel side surface, Flange bearing housing with 2C-EP primer (120 µm) and 2C-PUR top coat (80 µm), total thickness min. 200 µm (correspond to C4 according to DIN EN ISO 12944-5) |
| Color: | RAL 5009 (azure blue) |
| Conservation: | Running tread, shaft/shaft end and connecting surfaces of the flanged bearing housings preserved with Tectyl |
| Shaft accessories: | - with retaining ring |
| Weight (kg): | 253 kg |
