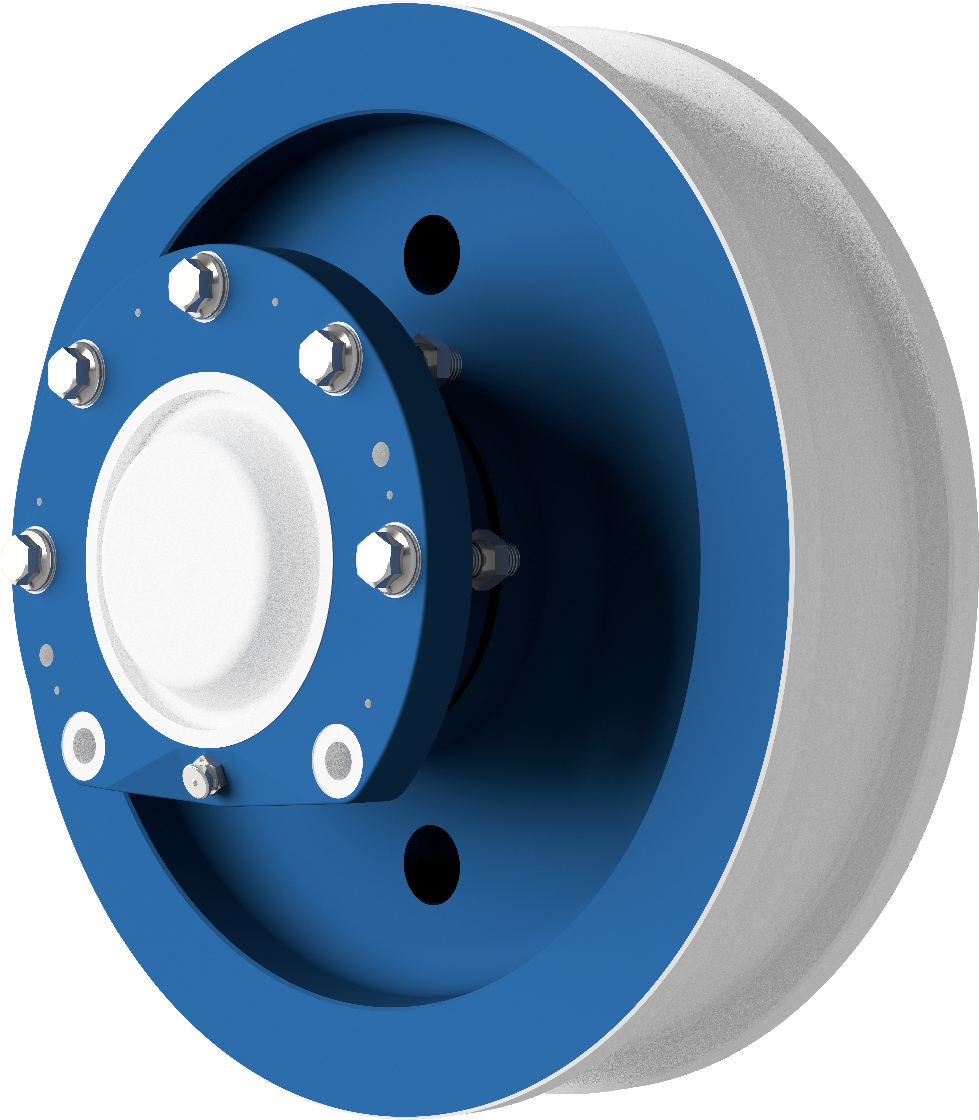

Size:
|
630 |
|
Running tread (b1) [mm]:
|
130 |
|
Wheel width (b2) [mm]:
|
210 |
|
Installation variant:
|
1, corner bearing installation with mechanically machined flange centering |
|
Track form:
|
With double-sided wheel flange |
|
Bearing:
|
Self-aligning roller bearing 240 26 / 232 22 |
|
Bearing manufacturer:
|
NACHI/TIMKEN |
|
Shaft type:
|
Idler shaft |
|
Crane wheel-shaft connection:
|
Cone |
|
Grease:
|
Multifak EP2 (Texaco) |
|
Temperature range [°C]:
|
-30 to +90 |
|
KG-drawing:
|
1.00.27038 |
|
Crane wheel material:
|
EN-GJS-700-2 |
|
Flange bearing housing material:
|
EN-GJS-500-7 |
|
Shaft material:
|
42CrMo4+QT |
|
Painting:
|
Wheel side surface, Flange bearing housing with 2C-PUR single-layer |
|
Color:
|
RAL 5009 (azure blue) |
|
Conservation:
|
Running tread and connecting surfaces of the flanged bearing housings preserved with Tectyl
|
|
Weight (kg):
|
378 kg |
