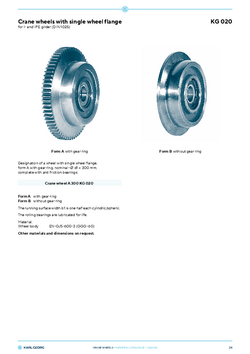

KG factory standard 020
Crane wheels with one-sided flange
| for wheel-⌀ d1 (mm) | b1 (mm) | d3 (mm) | Module | Teeth | Wheel load max. in kg |
|---|---|---|---|---|---|
| 130 | 26 | 30 | 3 | 52 | 1.900 |
| 160 | 31.5 | 35 | 4 | 53 | 2.500 |
| 200 | 39 | 45 | 4 | 70 | 3.300 |
| 300 | 56 | 65 | 4 | 100 | 5.500 |
Form A with gear ring
Form B without gear ring
–30 °C up to +200 °C
Up to 5.5 tons
High availability
Easy installation
